Getting Started With ARC

Overview

There are three steps to getting Roon 2.0 up and running on your mobile device.

Server Setup - Ensure your server is up-to-date with Roon 2.0
Network Setup - Roon will automatically configure your network so Roon ARC can communicate with your server from outside your network
Mobile App Setup - Install the new Roon ARC app on your iOS or Android device

Roon Server Setup

In order to run ARC, you will need to verify that you are running Roon 2.0 on your server.

You can see this information in the About tab within settings.

Network Setup

Roon ARC is designed to connect to your Roon Server from outside your home.

Your home network will need to be configured so that Roon ARC can communicate with your server from outside your network. In most cases, Roon can automatically configure your network for you.

Roon uses the UPnP feature on your router to automatically set up the network configuration needed for ARC to work. Make sure UPnP is enabled on all routers in your network.

Using IPv6:

UPnP isn’t required for IPv6 connections. However, some routers include a built-in firewall that can block incoming IPv6 traffic. If that’s the case, you may need to add a firewall rule to allow port 55000 so ARC can connect to your Roon Server.

Testing Your Configuration

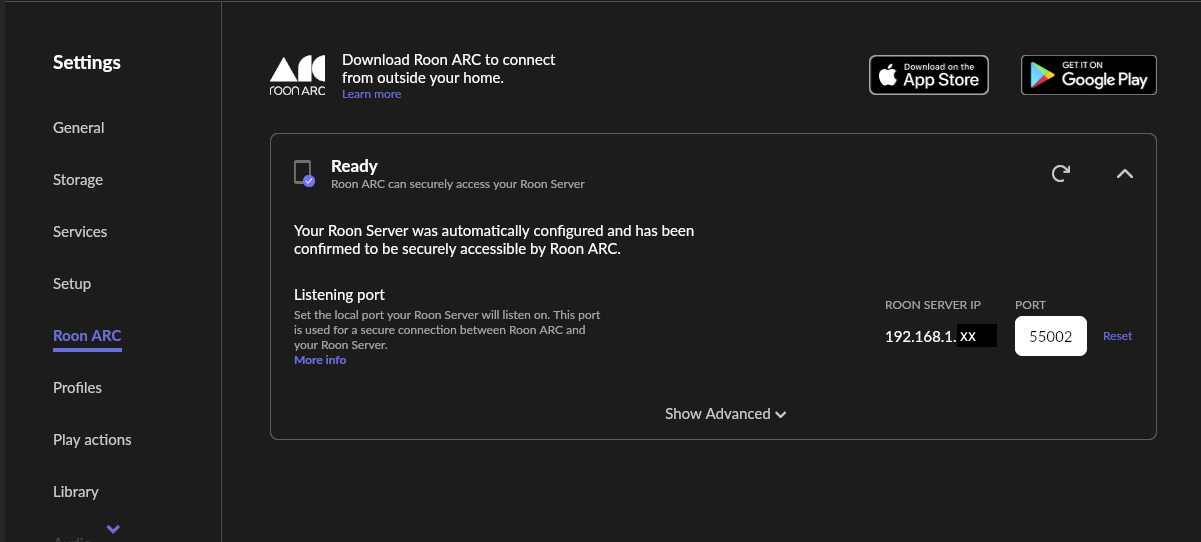

Visit the Roon ARC tab in Settings to confirm your network setup.

If you see the Ready message with the purple check, Roon has automatically configured your network and you’re ready to start using ARC.

If you don’t see the checkmark, please head over to our port forwarding documentation here to learn how to manually configure your network.

Mobile App Setup

Now that your server is setup and we’ve verified your network connections, simply download the ARC app from the app store.

Android 9 minimum
iOS 12+ minimum

Note that ARC is a completely different and new app from the Roon app available on mobile devices.

Initial Sync

Once you’ve installed ARC, you’ll log in with your Roon account, select your server, and begin the initial sync to your phone. Most users should be able to complete ARC’s initial sync in a few minutes. We recommend completing your initial sync while on the same network as your server. For best results, make sure your phone is plugged in, and not going to sleep, auto-locking, or otherwise putting ARC into the background until the sync is complete.

If you're still having problems completing the initial sync or getting started with Roon ARC get in touch with our support team.
